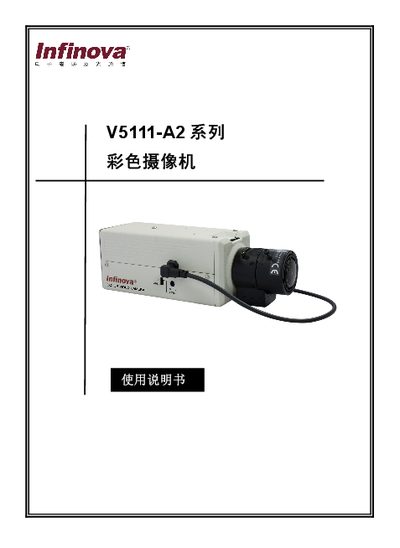

This manual introduces the main features, installation and operation methods of the V5111-A2 series color cameras.
This manual introduces the V5111-A2 series color camcorder, featuring a high‑sensitivity 1/3" SONY HAD CCD sensor, automatic day/night conversion, and robust all‑aluminum housing. It lists the supported models, lens interfaces, and typical monitoring applications such as malls, banks, and streets.
The guide covers detailed installation steps, lens mounting, power connections, and operation controls, including white‑balance modes, anti‑flicker, and back‑light compensation. Appendices provide safety precautions and a full specifications table. This manual is written in Chinese.
| Image sensor | 1/3" SONY HAD CCD |
|---|---|
| Resolution | 480TVL |
| Minimum illumination (color/black‑white) | 0.3 Lux @ F1.2 (30IRE, AGC ON) |
| Power supply | 12 VDC/24 VAC or 100~240 VAC |
| Operating temperature | -10 °C ~ 50 °C |
| Dimensions (H × W × L) | 60 mm × 50 mm × 130 mm |
| Net weight | 0.36 kg |
When the surrounding environment becomes dark, the camera automatically switches to black‑white mode; when the light level rises, it switches back to color mode.
The camcorder can be powered by 12 VDC/24 VAC adaptive supply or a 100~240 VAC adaptive supply.
