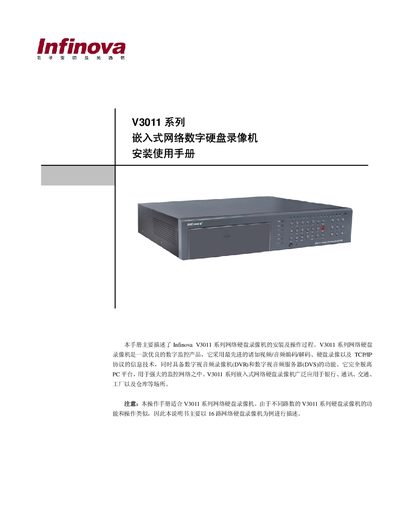

This manual mainly describes the installation and operation process of Infinova V3011 series network hard disk recorders. V3011 series network hard disk recorders are excellent digital monitoring products. They use the most advanced technologies such as video/audio coding/decoding, hard disk recording and TCP/IP protocol, and at the same time have digital video recorder (DVR) and digital video server (DVS) functions. It is completely separated from the PC platform and used in a powerful monitoring network. V3011 series embedded network hard disk recorders are widely used in banks, communications, transportation, factories and warehouses.
The V3011 series embedded network digital hard‑disk DVR is a surveillance device that integrates video/audio compression, large‑capacity storage and TCP/IP networking. It supports up to 16 video channels and can operate independently or as part of a larger security system.
The manual covers safety precautions, installation environment requirements, hardware connections, front‑panel functions, menu navigation, network configuration, recording settings, and troubleshooting. It also includes technical specifications, typical system connection diagrams, and quick‑reference tables for common functions. This manual is written in Chinese.
| Maximum video input channels | 16 |
|---|---|
| Supported video resolution per channel | Up to 4CIF (D1) |
| Video outputs | 1 BNC and 1 VGA |
| Audio inputs | 2 (1 line‑in, 1 auxiliary) |
| Maximum hard‑disk capacity | Up to 8 SATA disks (e.g., 8 × 400 GB) |
The DVR operates normally between –10 °C and 50 °C, and can be stored between –10 °C and 70 °C.
It can support up to 16 video channels (or 16 video loop‑back outputs).
