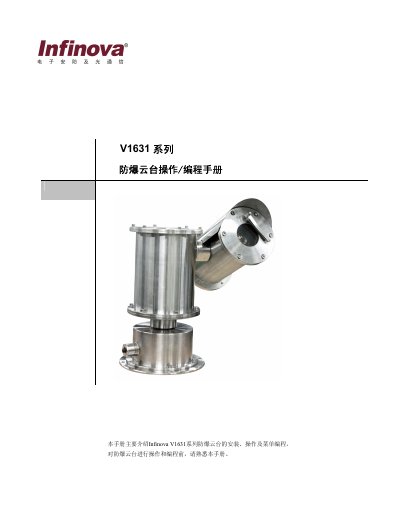

The Infinova V1631 series explosion‑proof PTZ mount manual provides installation, operation, safety guidelines, and menu programming instructions.
This manual describes the V1631 series integrated explosion‑proof PTZ mount, including its construction, safety features, and environmental requirements. It covers installation options, wiring, power requirements, and self‑check procedures.
Detailed sections explain normal operating conditions, explosion‑proof design points, product features such as multi‑protocol PTZ control, preset positions, pattern scans, and zoom options, as well as menu programming and protocol command tables for PELCO‑P/D and INFINOVA. Appendices list product specifications, camera specifications, and troubleshooting tips. This manual is written in Chinese.
| Operating temperature range | -20 °C to +60 °C |
|---|---|
| Power input voltage | 110 V‑240 V AC |
| Construction material | 316 stainless steel |
| Ingress protection rating | IP68 |
| Explosion‑proof rating | ExdIICT6 |
| Maximum preset positions | 128 |
| Supported zoom levels | 23×, 26×, 35×, 36× |
| Rotation speed | 0.1‑25°/s |
| Maximum addressable PTZ devices | 255 |
It can operate continuously from –20 °C up to +60 °C.
Up to 128 preset positions can be set and called.
The mount is certified with the ExdIICT6 explosion‑proof rating.
It accepts an input voltage of 110 V to 240 V AC.
