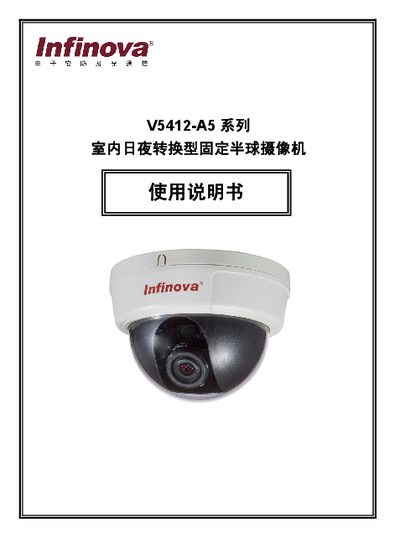

The Infinova V5412-A5 indoor day/night fixed dome camera manual provides installation steps, key features, and configuration settings.
This manual introduces the V5412-A5 series indoor day/night fixed dome camera, highlighting its high‑sensitivity 1/3" SONY Super HAD II CCD sensor, digital signal processing, and selectable infrared‑corrected zoom lenses. It lists the supported models (V5412‑A5004S, V5412‑A5014S, V5412‑A5034S, V5412‑A5044S) and their basic specifications.
The document details installation procedures, safety precautions, and how to adjust camera functions such as backlight compensation, automatic electronic shutter, white balance, and lens drive mode. A full specifications table is provided for quick reference. This manual is written in Chinese.
| Image sensor | 1/3" SONY Super HAD II CCD |
|---|---|
| Effective pixels (NTSC) | 768×494, 380K |
| Resolution | 560 TVL |
| Minimum illumination (color mode) | 0.5 Lux @ F1.2 |
| Minimum illumination (black‑white mode) | 0.01 Lux @ F1.2 |
| Power supply | 12 VDC / 24 VAC |
| Operating temperature | -10 °C ~ +50 °C |
| Dimensions | Height 97.5 mm × Ø128 mm |
| Video output | 1.0 Vp‑p composite, 75 Ω BNC |
The camera uses a removable IR‑cut filter that automatically switches between color and black‑white modes depending on lighting conditions.
The camera needs at least 0.5 Lux at F1.2 aperture for color mode.
