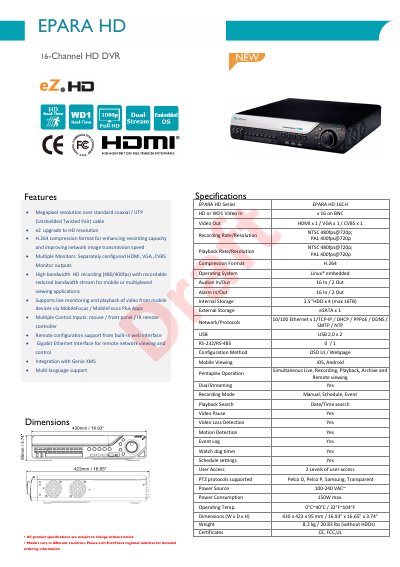

This document provides specifications and features for the EverFocus EPARA HD 16CH HD or WD1 Digital Video Recorder, including video input/output, recording…
The EverFocus EPARA HD 16CH HD or WD1 is a digital video recorder (DVR) designed for megapixel resolution over standard coaxial or UTP cables. It supports H.264 compression to enhance recording capacity and improve network transmission speed, with the ability to upgrade to HD resolution via eZ upgrade.
| Video Input Channels | 16 on BNC |
|---|---|
| Compression Format | H.264 |
| Recording Rate (NTSC) | 480fps@720p |
| Internal Storage Capacity | 3.5''HDD x 4 (max 16TB) |
| External Storage Interface | eSATA x 1 |
| Network Interface | 10/100 Ethernet x 1 |
| USB Ports | 2.0 x 2 |
| Power Consumption | 150W max. |
| Operating Temperature | 0°C~40°C / 32°F~104°F |
The device uses H.264 compression format for enhancing recording capacity and improving network image transmission speed.
Yes, it supports live monitoring and playback of video from mobile devices via MobileFocus / MobileFocus Plus Apps.
The DVR supports Pelco D, Pelco P, Samsung, and Transparent PTZ protocols.
