Operation instructions for the EverFocus ED640 indoor dome camera, covering installation, OSD menu settings, lens adjustment, and technical specifications.

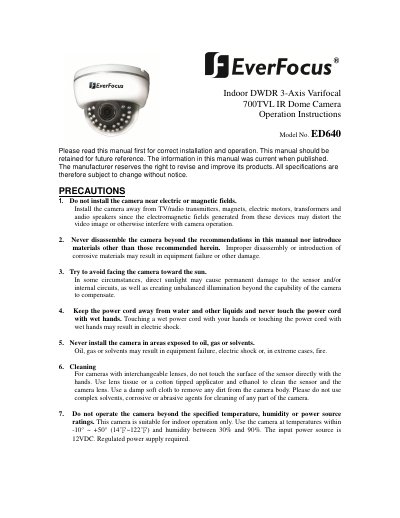

This manual provides operation instructions for the EverFocus ED640 Indoor DWDR 3-Axis Varifocal IR Dome Camera. It details precautions for safe installation and use, including environmental limits and cleaning procedures. The document guides users through mounting the camera on a ceiling or wall using the included template and hardware.
| Image Sensor | 1/3" Sony Super HAD II Color CCD |
|---|---|
| Resolution | 700 TV Lines |
| Lens | 2.8~12mm VF AI |
| Min. Illumination | 0.01 lux nominal; 0 lux with IR LEDs on |
| IR Range | 82 feet |
| Power Supply | DC 12V±10% |
| Operating Temperature | -10° C~50° C |
The minimum illumination is 0.01 lux nominal, or 0 lux when IR LEDs are on.
The range is up to 82 feet, depending on scene IR reflectivity.
A regulated DC 12V±10% power source is required.
Yes, it features a 3-axis wall or ceiling mount indoor plastic housing.
