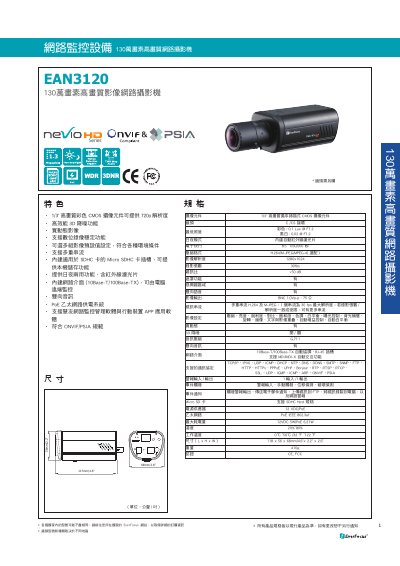

This document provides product specifications for the EverFocus EAN3120 1.3MP network camera, covering image quality, connectivity, and environmental…
The EverFocus EAN3120 is a high-quality 1.3-megapixel network camera featuring a 1/3-inch progressive scan CMOS sensor that delivers 720p resolution. It includes advanced features such as efficient 3D noise reduction, wide dynamic range imaging, and digital video stabilization to ensure clear footage in various lighting conditions. This manual is written in Chinese.
| Sensor Type | 1/3" High Definition Progressive Scan CMOS |
|---|---|
| Resolution | 1280x1024 (720p) |
| Frame Rate | 30fps |
| Network Interface | 10Base-T/100Base-TX |
| Power Supply Options | 12 VDC/PoE IEEE 802.3af |
| Operating Temperature | 0℃ ~50℃ /32 ℉ ~122 ℉ |
| Dimensions (L x H x W) | 118 x 56 x 68mm |
The camera provides a 720p resolution with an image resolution of 1280x1024.
When using PoE, the maximum power consumption is 6.21W.
The device operates within a temperature range of 0℃ to 50℃ (32℉ to 122℉).
