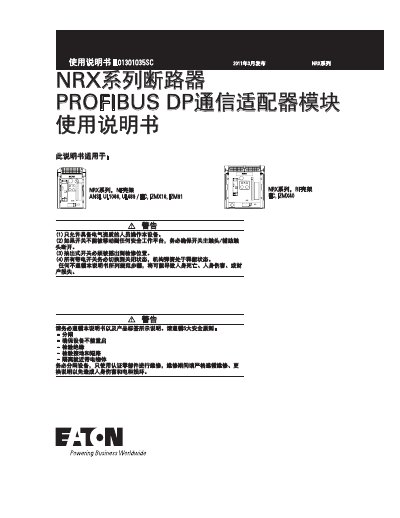

This manual provides installation, wiring, configuration, and operation instructions for the Eaton NRX Series PROFIBUS DP Communication Adapter Module (PCAM).
The Eaton NRX Series PROFIBUS DP Communication Adapter Module (PCAM) is a communication accessory designed for use with NRX Series trip units/circuit breakers. It operates as a slave device on a PROFIBUS DP master station network using the PROFIBUS-DP-V0 protocol. The module enables control commands for tripping, closing, and resetting the circuit breaker, as well as monitoring power and residual current status. It requires a 24V DC power supply and is designed for DIN rail installation. This manual is written in Chinese.
| Power Supply Voltage | 24V DC |
|---|---|
| Power Consumption | 10W |
| Communication Protocol | PROFIBUS-DP-V0 |
| Address Range | 001-125 |
| Connector Type | 9-pin D-SUB |
| DIN Rail Width | 28mm |
The module supports 126 addresses, with a configurable range from 001 to 125.
Remote control is enabled by setting the PROFIBUS DP control jumper to the ENABLE position.
A blinking red and green LED indicates that the module is identifying connection signals with the NRX Series trip unit during startup initialization.
