The Eaton 9130M UPS is a marine‑grade double‑conversion UPS with multilingual LCD, hot‑swap batteries and DNV/ABS certification.
The Eaton 9130M UPS is designed for shipboard and offshore platforms, offering high availability with automatic bypass, power‑factor correction, and hot‑plug battery modules. It features a compact tower design, multilingual LCD display, and multiple human‑machine interfaces for various communication needs.

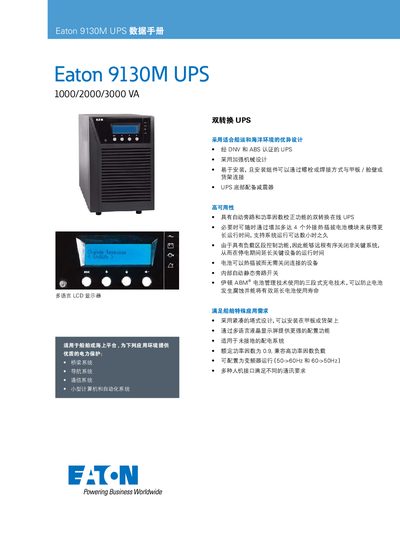

Technical specifications include a wide input voltage range (220‑240 V), output voltage tolerance of ±3 %, power factor of 0.9, and compliance with IEC/EN standards and DNV/ABS certifications. The unit operates in temperatures from 0 °C to +40 °C, with optional hot‑swap battery modules for extended runtime. This manual is written in Chinese.
| Input Voltage | 220/230/240 V |
|---|---|
| Output Voltage | 220/230/240 V ± 3 % |
| Power Factor | 0.9 |
| Frequency Range | 40‑70 Hz (50/60 Hz) |
| Noise Level | < 50 dB |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature (with battery) | -20 °C to +40 °C |
| Dimensions (1 kVA model) | 363 × 330 × 411 mm |
The LCD can display text in English, French, German, Russian and Spanish.
Yes, the batteries are hot‑plug capable and can be swapped without powering down connected equipment.
