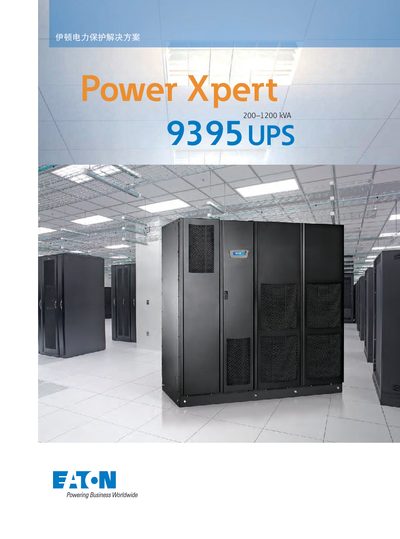

Eaton Power Xpert 9395 UPS series offers modular, high‑efficiency, double‑conversion UPS solutions from 200 kVA to 1200 kVA.
The Power Xpert 9395 UPS series from Eaton provides a range of capacities (200‑1200 kVA) with double‑conversion topology, high input power factor (>0.99) and low harmonic distortion (<3%). The design emphasizes modularity, redundancy (N+1 fans, logic power), and energy‑saving features such as VMMS module sleep and ESS direct‑feed modes, achieving up to 99% efficiency.
Eaton also supplies integrated monitoring software (Power Xpert) and optional upgrades like color touch screens, energy‑saving modules, and extensive communication options (SNMP, Modbus, CAN‑bus). The series includes a marine‑grade model (9395M) for harsh shipboard environments and a comprehensive service network for installation, training, and support. This manual is written in Chinese.
| Rated capacity | 200‑1200 kVA |
|---|---|
| Rated voltage | 380/400/415 V (three‑phase) |
| Input power factor | >0.99 |
| Input current harmonic distortion | <= 3 % |
| Efficiency (ESS mode, full load) | up to 99 % |
| Parallel capability | Up to 8 UPS units |
| Battery type | VRLA, AGM, gel, water‑filled or Eaton brand |
| Communication slots | 4 X‑SLOT slots (optional SNMP, Modbus, CAN‑bus, dry‑contact cards) |
The UPS can reach up to 99 % efficiency when operating in ESS mode at full load.
Up to eight UPS units can be connected in parallel.
Yes, the 9395M model is a ship‑board UPS designed for high temperature, humidity, salt‑corrosion and vibration environments.
