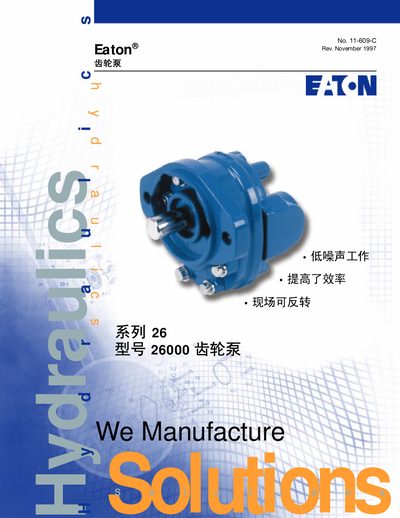

This manual provides technical data, performance specifications, dimensions, and ordering information for the Eaton 26 Series high pressure gear pump.
The document is a technical service manual for the Eaton 26 Series High Pressure Gear Pump. It details key features such as low noise operation due to improved困油槽 (trap oil groove) overflow and field-reversible rotation capabilities without additional parts.
The text provides extensive performance data tables and curves covering various displacement sizes, including maximum continuous pressure of up to 210 bar [3000 PSI] and intermittent pressure of 240 bar [3500 PSI]. It also lists standard catalog component dimensions for different model numbers.
| Maximum Continuous Pressure | 210 bar [3000 PSI] |
|---|---|
| Maximum Intermittent Pressure | 240 bar [3500 PSI] |
| Minimum Operating Speed (at continuous pressure) | 750 RPM |
| Maximum Continuous Operating Temperature | 105°C [220 °F] |
| Minimum Oil Viscosity (at continuous operation) | 5.7 cSt [45 SUS] |
The pump can handle a maximum continuous pressure of 210 bar, which is equivalent to 3000 PSI.
Continuous operation requires a minimum oil viscosity of 5.7 cSt, or 45 SUS.
The pump has a maximum intermittent pressure rating of 240 bar, or 3500 PSI.
