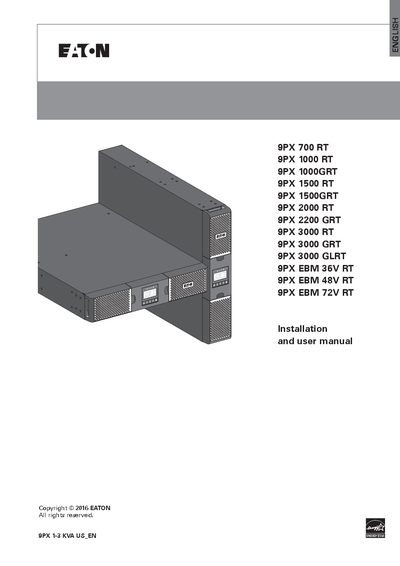

Eaton 9PX 1-3 KVA UPS User Manual

The Eaton 9PX 1-3 KVA UPS User Manual provides installation, operation, safety and maintenance instructions for the UPS and its accessories.

Brand: Eaton
Category: Power System Manager
Document type: User Manual
Language: English
Pages: 46
File format: PDF
File size: 13.8 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 2418EE86C9B7199FB5DCD2480F60BECE
PDF: Eaton 9PX 1-3 KVA UPS User Manual PDF

About this manual

This manual covers safety instructions, environmental requirements, and handling precautions for the Eaton 9PX UPS series. It includes detailed guidance on installation, wiring, battery handling, and recommended operating conditions.

The document also describes communication options, operation modes, troubleshooting steps, and full technical specifications for each model in the 9PX range.

What's inside

Introduction
Presentation
Rear panels
Installation
Communication
Operation
Maintenance
Troubleshooting
Specifications
Glossary

Specifications

Power rating (700VA model)	700VA / 630W
Input voltage (700VA model)	120V / 5.8A
Battery voltage (EBM 36V)	36Vdc
Efficiency (700 VA LV model)	89.9 %
Dimensions (700VA model)	17.7 × 17.3 × 3.4 in (450 × 440 × 86.5 mm)

Frequently asked questions

What is the operating temperature range for the 9PX UPS?

The UPS operates from 0 °C to 40 °C in online mode.

How many people are required to lift and install the UPS?

All handling operations require at least two people.

What is the recommended storage temperature when batteries are installed?

Store the UPS with batteries at 0 °C to 40 °C.
