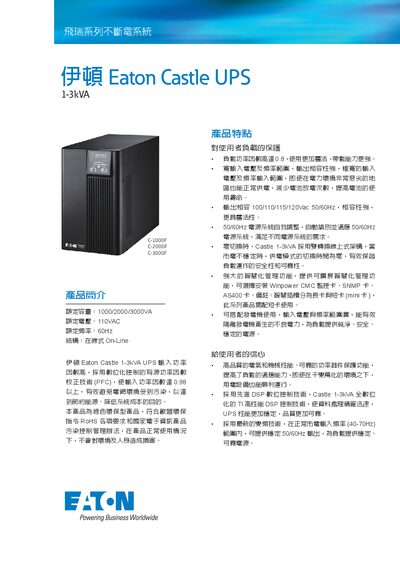

The Eaton Castle C-1000F, C-2000F, and C-3000F UPS deliver up to 3 kVA with online double‑conversion, zero‑transfer time and extensive management options.
The Castle series UPS provides online double‑conversion power protection with a wide input voltage range (80‑140 V) and automatic 50/60 Hz detection. It offers high power factor (0.98) and low total harmonic distortion, ensuring clean and stable power for sensitive loads.
Key features include zero‑transfer switching (<4 ms), intelligent management via optional WinPower CMC, SNMP or AS400 cards, and the ability to operate with generators. The units are RoHS‑compliant and designed for harsh power environments, with optional external battery cabinets for extended runtime. This manual is written in Chinese.
| Rated Capacity | 1 kVA / 2 kVA / 3 kVA |
|---|---|
| Input Voltage | 80 V–140 V ±5 V (single‑phase 2‑wire) |
| Output Voltage (selectable) | 100 V, 110 V, 115 V, 120 V (single‑phase 2‑wire) |
| Efficiency (AC‑to‑AC) | 86 % |
At full load, the UPS provides more than 5 minutes for the 1 kVA and 2 kVA models and more than 4 minutes for the 3 kVA model.
The UPS can operate in temperatures from 0 °C to 40 °C.
