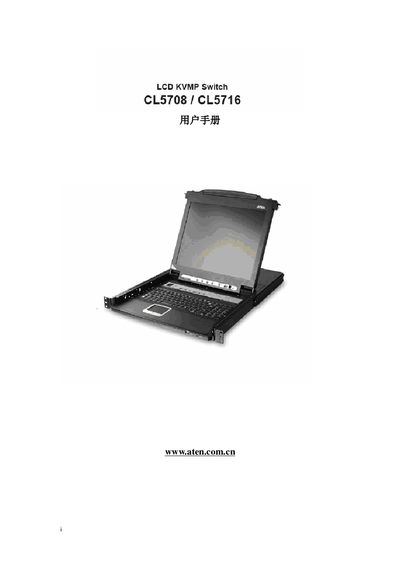

ATEN CL5708/CL5716 KVM Switch User Manual

This manual describes the basic operation and features of the CL5708/CL5716 KVMP switch, including installation, setup, operation, and troubleshooting.

Brand: ATEN
Category: Other Computer Accessories
Document type: User Manual
Language: Chinese
Pages: 91
File format: PDF
File size: 1.1 MB
Updated: 30 September, 2023
MD5 checksum: 9C63D622BBDCF0F9A8C55DA51561912C
PDF: ATEN CL5708/CL5716 KVM Switch User Manual PDF

About this manual

This manual covers the ATEN CL5708/CL5716 KVM Switch, describing its hardware components, installation options, and basic operation.

It also details OSD menu navigation, keyboard hot‑key functions, firmware update procedures, safety information, and full technical specifications. This manual is written in Chinese.

What's inside

Introduction
Hardware Installation
Basic Operation
OSD Operation
Keyboard Port Operation
Firmware Update Tool
Safety Information
Product Specifications
Packaging Details
Technical Support

Specifications

Maximum ports (8‑port mode)	8
Maximum ports (daisy‑chain)	256
Video resolution	1280 × 1024 @ 75Hz
Power consumption	25W
Operating temperature	0 – 40℃
Dimensions (L×W×H) – 8‑port model	63.40 × 48.00 × 4.40 cm

Frequently asked questions

How can I register my ATEN CL5708/CL5716 product online?

Visit ATEN’s online support center and register the product using the provided registration URLs.

What certifications does the CL5708/CL5716 comply with?

The device meets FCC Class A requirements and complies with RoHS standards.
