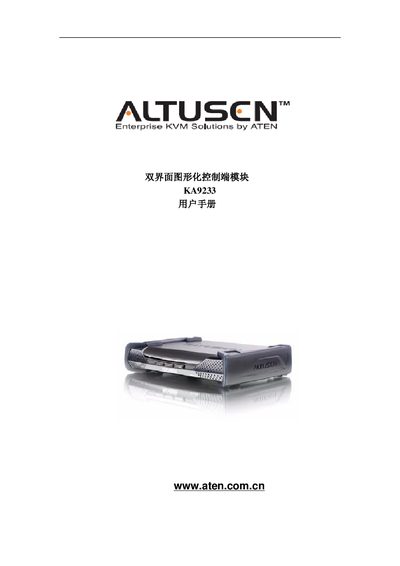

The ATEN KA9233 dual‑interface graphics control module user manual provides safety instructions, installation steps, operation guides, and specifications.
The KA9233 is a dual‑interface graphics control module that provides KVM switching with graphical OSD, hot‑key control, and network management features. It is designed for use in rack‑mounted or stacked configurations and supports one host and one control port.
The manual covers safety precautions, rack and stack installation, wiring, hot‑plug procedures, network configuration, user and group management, firmware updates, and detailed product specifications. It also includes troubleshooting tips and an index for quick reference. This manual is written in Chinese.
| Host connections | 1 |
|---|---|
| Control port connections | 1 |
| USB A host port | 1 × |
| Mini‑DIN 6‑pin port | 1 × |
| HDB‑15 monitor port | 1 × |
| Power input | DC 5.3 V, 6 W |
| Operating temperature | 0‑50 °C |
| Dimensions (L×W×H) | 16.60 × 21.50 × 4.50 cm |
| Weight | 1.20 kg |
The KA9233 supports one host connection.
It requires a DC 5.3 V power supply with a consumption of 6 W.
