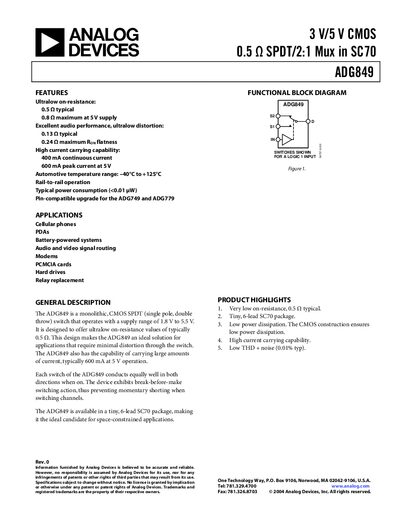

The ADG849 data sheet from Analog Devices details specifications, pin configuration, and performance of the 0.5 Ω CMOS SPDT switch in an SC70 package.
The ADG849 is a monolithic CMOS single‑pole double‑throw (SPDT) switch designed for low distortion and ultra‑low on‑resistance. It operates from 1.8 V to 5.5 V and is offered in a tiny 6‑lead SC70 package, making it suitable for space‑constrained applications such as cellular phones, PDAs, and audio/video routing.
Key features include a typical on‑resistance of 0.5 Ω, high current capability (400 mA continuous, 600 mA peak), automotive temperature range (‑40 °C to +125 °C), and very low power consumption (<0.01 µW). The sheet provides detailed pin descriptions, absolute maximum ratings, typical performance curves, and test circuit examples.
| Maximum On‑Resistance | 0.8 Ω |
|---|---|
| Continuous Current | 400 mA |
| Peak Current | 600 mA |
| Supply Voltage Range | 1.8 V to 5.5 V |
| Operating Temperature Range | ‑40 °C to +125 °C |
| Typical Power Consumption | <0.01 µW |
| Bandwidth (‑3 dB) | 38 MHz |
| THD + N | 0.01 % |
It can carry 400 mA continuously and up to 600 mA peak current.
The device operates from 1.8 V up to 5.5 V.
The ADG849 is rated for temperatures from –40 °C to +125 °C.
