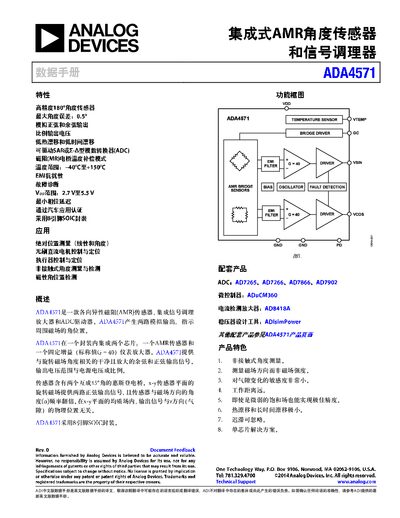

Datasheet for Analog Devices integrated angle sensor and signal conditioner with high‑accuracy magnetic angle measurement and built‑in diagnostics.
The document describes an anisotropic magnetoresistive (AMR) angle sensor that integrates a signal‑conditioning amplifier and driver in a single package. It provides two analog outputs (sine and cosine) proportional to the magnetic field angle, with low thermal drift and fault‑diagnosis features.
Key features include non‑contact angle measurement, wide measurement distance, automotive‑grade certification, pin‑compatible packaging, and built‑in wire‑break detection. The datasheet contains electrical, magnetic, and mechanical specifications, pin assignments, and diagnostic information for system integration. This manual is written in Chinese.
| Analog outputs | Two (sine and cosine) |
|---|---|
| Gain control mode enable pin | Present |
| Wire‑break detection | Built‑in circuit |
It is an anisotropic magnetoresistive (AMR) angle sensor with integrated signal‑conditioning circuitry.
The device provides two analog outputs: a sine and a cosine signal.
Yes, it includes a built‑in wire‑break detection circuit that signals a fault when the sensor‑amplifier connection is broken.
Yes, the sensor is automotive‑application certified.
