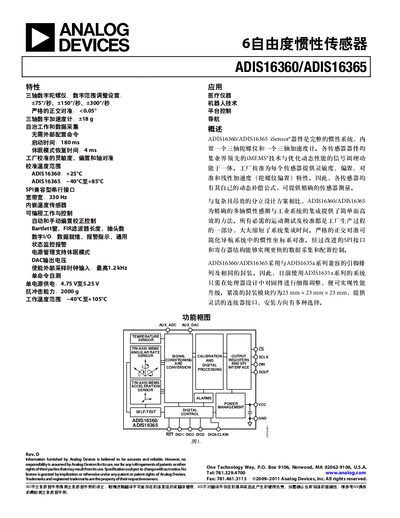

Technical data sheet for the ADIS16360 and ADIS16365 6‑DoF inertial sensors from Analog Devices.
The ADIS16360/ADIS16365 iSensor® devices combine a three‑axis gyroscope and a three‑axis accelerometer in a single MEMS package. They include factory‑calibrated sensitivity, bias, alignment and temperature compensation, providing precise inertial measurements for applications such as medical instruments, robotics and navigation.
The datasheet details specifications, pin configurations, timing diagrams, absolute maximum ratings, and mechanical dimensions. It also describes the SPI interface, power management, self‑test features, and recommended installation procedures. This manual is written in Chinese.
| Gyroscope range | ±300 °/sec |
|---|---|
| Supply voltage | 4.75 V to 5.25 V |
| Bandwidth | 330 Hz |
| Operating temperature range | −40 °C to +105 °C |
| Package size | 23 mm × 23 mm × 23 mm |
The device operates from a single supply voltage of 4.75 V to 5.25 V.
The gyroscope can measure angular rates up to ±300 °/sec (typical), with selectable ranges of ±150 °/sec and ±75 °/sec.
The module uses a 24‑pin layout.
It is rated for operation from –40 °C to +105 °C.
