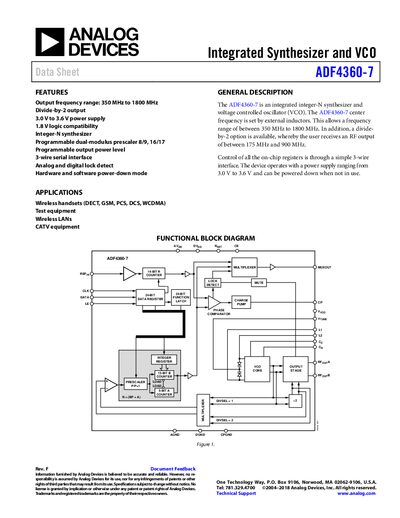

The ADF4360-7 datasheet from Analog Devices provides specifications, pin descriptions, timing, and absolute maximum ratings for the integrated integer‑N…
The ADF4360-7 is an integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) that covers an output frequency range of 350 MHz to 1800 MHz. It features a 3‑wire serial interface, programmable output power, and a divide‑by‑2 option for lower RF outputs.
The datasheet details functional block diagrams, pin configurations, timing characteristics, absolute maximum ratings, typical performance graphs, and design guidelines such as choosing inductance values and PFD frequencies. It also includes ordering information and revision history.
| Output frequency range | 350 MHz to 1800 MHz |
|---|---|
| Supply voltage | 3.0 V to 3.6 V |
| Reference input frequency | 10 MHz to 250 MHz |
| Reference input sensitivity | 0.7 V p‑p min/max |
| Operating temperature range | –40 °C to +85 °C |
The device can generate output frequencies from 350 MHz up to 1800 MHz.
It operates from a 3.0 V to 3.6 V power supply.
The allowed operating temperature is –40 °C to +85 °C.
The chip contains 12 543 CMOS transistors and 700 bipolar transistors.
