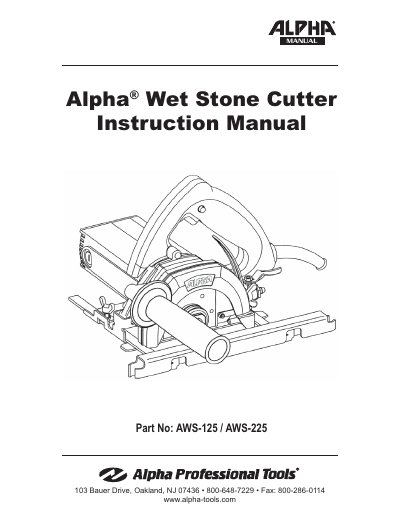

This manual provides safety instructions, operation guidelines, maintenance information, and technical specifications for the Alpha AWS-125 Wet Stone Cutter.
The Alpha AWS-125 Wet Stone Cutter is a power tool designed for cutting materials such as tile, concrete, stone, and glass. It features a 1200W motor with a no-load speed of 12,000 RPM and accepts a 5-inch cutting disc. The tool includes accessories like a water valve, ruler guide, and carbon brushes to ensure safe and efficient operation.
| Voltage | 110/220 Volts |
|---|---|
| Amperage | 11.2/5.5 |
| Power | 1200W |
| No-load Speed | 12,000 RPM |
| Weight | 7.2 lbs/3.3kg |
| Cutting Disc Diameter | 5" / 125mm |
| Maximum Cutting Depth | 1-5/8" / 41mm |
The tool is designed for cutting tile, concrete, stone, or glass.
Users should always wear safety glasses, and if necessary, a face shield, dust mask, and hearing protection.
Press the on/off switch and then the locking button to turn on; press the on/off switch and then release to turn off.
