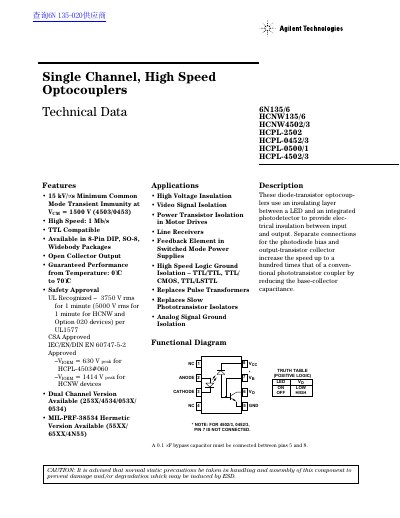

Agilent HCPL-4503/0453 Single Channel High Speed Optocouplers Technical Data Sheet

About this manual

This datasheet details the specifications, features, and applications of Agilent's Single Channel High Speed Optocouplers, specifically models HCPL-4503 and HCPL-0453. These devices utilize a diode-transistor structure to provide electrical insulation between input and output circuits with high speed performance up to 1 Mb/s.

What's inside

• Features
• Applications
• Description
• Functional Diagram
• Ordering Information
• Package Outline Drawings
• Regulatory Information
• Insulation Related Characteristics

Frequently asked questions

What is the minimum common mode transient immunity for these optocouplers?

The devices have a 15 kV/µs Minimum Common Mode Transient Immunity at V CM = 1500 V.

What is the maximum operating temperature range?

Guaranteed performance is provided from a temperature of 0 °C to 70°C.

What safety approvals do these devices have?

They are UL Recognized under UL 1577 and CSA Approved per IEC/EN/DIN EN 60747-5-2.
