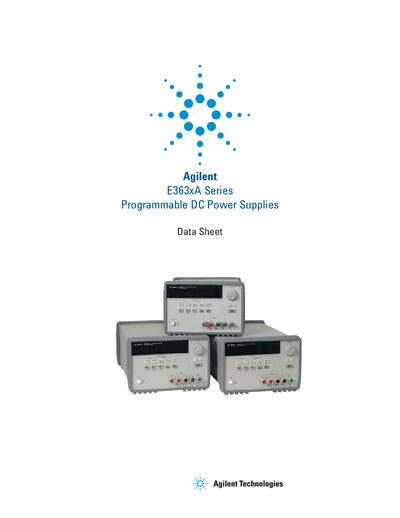

The Agilent E363xA Series data sheet provides specifications, ordering information, and key features for the programmable DC power supplies.
The E363xA Series offers reliable, low‑noise programmable DC power supplies with single‑ or triple‑output options ranging from 80 W to 200 W. All models include dual‑range output, remote sensing (except E3631A), front/rear terminals (E3633A/34A), and standard GPIB and RS‑232 interfaces for easy programming via SCPI commands.
The data sheet lists detailed electrical specifications, model numbers (E3631A, E3632A, E3633A, E3634A), ordering options, mechanical dimensions, and service information, helping users select the right configuration for R&D, production testing, or QA applications.
| Output Rating (E3631A) | 0 to +6 V, 0 to 5 A |
|---|---|
| Load Regulation | < 0.01 % + 2 mV |
| Line Regulation | < 0.01 % + 2 mV |
| Normal Mode Voltage Ripple and Noise | < 350 µVrms/2 mVpp |
| Remote Sensing | Available on all models except E3631A |
All models come equipped with standard GPIB and RS‑232 interfaces for remote control.
The series offers single and triple output options with power ranging from 80 W to 200 W.
The series includes models E3631A, E3632A, E3633A, and E3634A.
Yes, remote sensing is available on all models except the E3631A.
