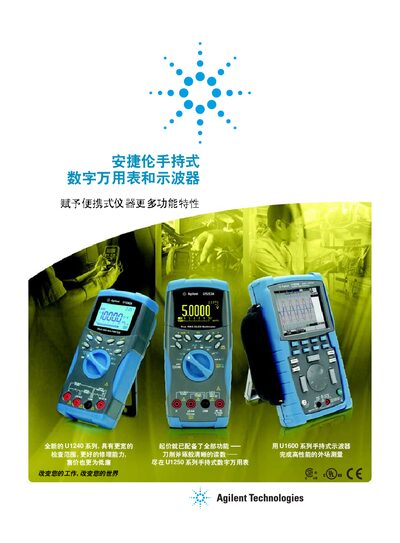

The brochure presents Agilent’s U1240, U1250 and U1600 handheld DMM and oscilloscope series, highlighting features, specifications, accessories and support…
The U1240/U1250/U1600 series offers portable digital multimeters and oscilloscopes designed for installation, maintenance and field measurement tasks. Each instrument combines high‑resolution displays, true‑RMS measurement, and a range of built‑in functions such as harmonic ratio, switch counting and data logging.
Technical specifications cover voltage, current, resistance, frequency and capacitance ranges, while the accessories section lists standard test leads, probes, temperature adapters and optional software for PC data acquisition. Service and support information is also provided, including global warranty and calibration services. This manual is written in Chinese.
| Counts | 10,000 |
|---|---|
| Voltage measurement range | 1000 V AC/DC |
| Resistance range | 100 MΩ |
| Frequency range | 200 kHz |
| Capacitance range | 0.1 nF – 10 mF |
| Oscilloscope sampling rate | 200 MSa/s |
| Overvoltage protection | CAT III 1000 V |
| Battery type | 4 x AAA |
The U1600 series oscilloscope provides a sampling rate of 200 MSa/s.
The U1240 series includes CAT III 1000 V overvoltage protection.
It can measure AC/DC voltage up to 1000 V.
It is powered by four AAA batteries.
