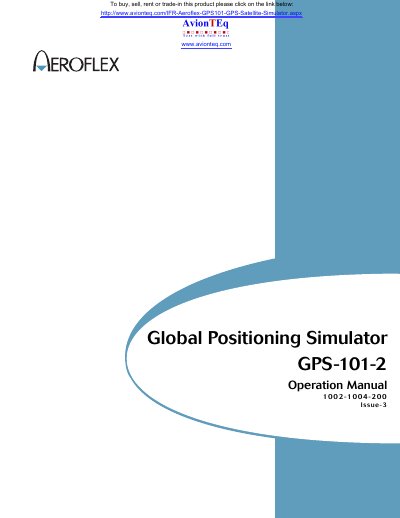

Aeroflex GPS-101-2 Global Positioning Simulator Operation Manual

Operation manual for the Aeroflex GPS-101-2 Global Positioning Simulator, covering safety, operation, specifications, and maintenance instructions.

Brand: Aeroflex
Category: GPS
Document type: User Manual
Language: English
Pages: 70
File format: PDF
File size: 981 KB
Published: 15 October, 2026
Updated: 15 October, 2026
MD5 checksum: A22DECEF7DA67FD8C10BEBA5F93CB96C
PDF: Aeroflex GPS-101-2 Global Positioning Simulator Operation Manual PDF

About this manual

This document is the Operation Manual for the Aeroflex GPS-101-2 Global Positioning Simulator. It provides comprehensive instructions for operating the device, including safety warnings regarding electrical hazards and electromagnetic interference. The manual details the setup of the simulator, which generates GPS L1 C/A code signals at 1575.42 MHz for testing purposes.

What's inside

Safety
Description
Operation
Specifications
Shipping
Storage
I/O Connectors
NAV Data
Auxiliary Equipment
Battery Instructions

Specifications

Frequency	1575.42 MHz
Accuracy	Same as Timebase
Channels	Single SV simulation (selectable 1 to 37)
PRN Code	C/A Code = 1.023 MHz, 1023 bit gold code
Output Level	-145 to -85 dBm
Timebase Frequency	10 MHz

Frequently asked questions

What is the maximum cable length for EMC compliance?

All external cables must be 3 meters or less in length.

Can the unit be serviced by the operator?

No, all servicing must be referred to qualified technical personnel.

What is the uncertainty of the internal timebase?

The uncertainty is ±1 ppm.
