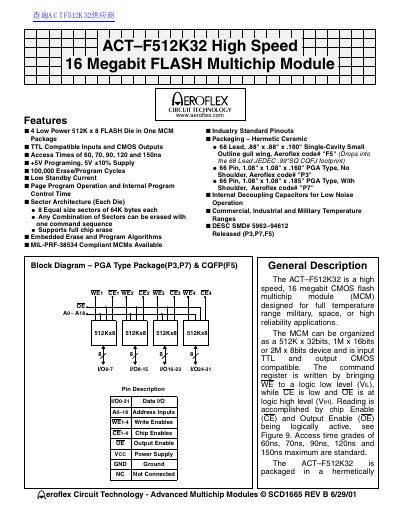

The ACT-F512K32 is a high speed, 16 megabit CMOS flash multichip module (MCM) designed for full temperature range military, space, or high reliability applications. The MCM can be organized as a 512K x 32bits, 1M x 16bits or 2M x 8bits device and is input TTL and output CMOS compatible. The command register is written by bringing WE to a logic low level (VIL), while CE is low and OE is at logic high level (VIH). Reading is accomplished by chip Enable (CE) and Output Enable (OE) being logically active, see Figure 9. Access time grades of 60ns, 70ns, 90ns, 120ns and 150ns maximum are standard. The ACT-F512K32 is packaged in a hermetically sealed package.
The Aeroflex Circuit Technology ACT-F512K32 is a high-speed, 16 megabit CMOS flash multichip module (MCM) specifically designed for full temperature range military, space, or high reliability applications. The device can be organized as a 512K x 32-bit, 1M x 16-bit, or 2M x 8-bit device and features TTL compatible inputs with CMOS outputs.
| Capacity Organization | 512K x 32bits, 1M x 16bits or 2M x 8bits |
|---|---|
| Operating Temperature Range (Military) | -55°C to +125°C |
| Supply Voltage | +4.5V to +5.5V |
| Data Retention | -10 Years |
| Endurance (Write/Erase cycles) | 100,000 Minimum |
| Access Time Grades | 60ns, 70ns, 90ns, 120ns and 150ns maximum |
The standard access time grades are 60ns, 70ns, 90ns, 120ns and 150ns maximum.
Yes, it is command set compatible with JEDEC standard 4 Mbit EEPROMs.
The device supports a minimum of 100,000 erase/program cycles.
