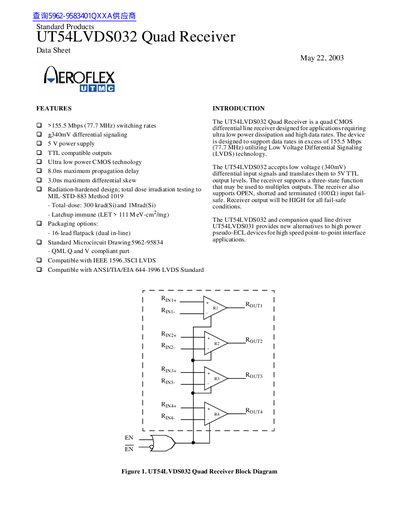

The UT54LVDS032 is the companion product to the UT54LVDS031, a quad CMOS differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 155.5 Mbps (77.7 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The UT54LVDS032 accepts low voltage (340 mV) differential input signals and translates them to 5V TTL output levels. The receiver supports a three-state function that may be used to multiplex outputs. The receiver also supports OPEN, shorted and terminated (100 Ω) input fail-safe. Receiver output will be HIGH for all fail-safe conditions.
The Standard Products UTS4LVDS032 is a quad CMOS differential line receiver designed for applications requiring ultra-low power dissipation and high data rates. It accepts low voltage (340mV) differential input signals and translates them to 5V TTL output levels, supporting data rates in excess of 155.5 Mbps using Low Voltage Differential Signaling (LVDS). The device features a three-state function for multiplexing outputs and includes fail-safe protection against open, shorted, or terminated inputs.
| Data Rate | >155.5 Mbps (77.7 MHz) |
|---|---|
| Differential Signaling Voltage | +340mV |
| Power Supply | 5 V |
| Output Logic Level | TTL compatible |
| Technology | Ultra low power CMOS |
| Maximum Propagation Delay | 8.0ns |
| Maximum Differential Skew | 3.0ns |
| Total Dose Radiation Hardness | 1Mrad(Si) |
The device supports data rates in excess of 155.5 Mbps (77.7 MHz).
The receiver operates with a +5V power supply.
For all fail-safe conditions, including open, shorted, or terminated inputs, the receiver output will be HIGH.
Yes, it has a radiation-hardened design with total dose irradiation testing to MIL-STD-883 Method 1019.
