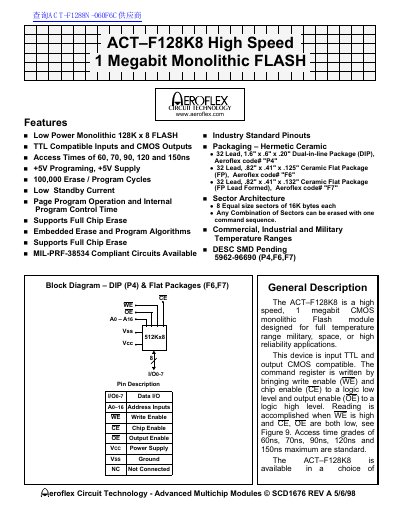

The ACT-F128K8 is a high-speed CMOS monolithic Flash module designed for full temperature range military, space, or high reliability applications. It features low power consumption, TTL compatible inputs and CMOS outputs, various access time options, +5V programming and supply, support for full chip erase, etc.
The ACT–F128K8 is a high speed, 1 megabit CMOS monolithic Flash module designed for full temperature range military, space, or high reliability applications. The device features TTL compatible inputs and CMOS outputs, supporting access times of 60ns, 70ns, 90ns, 120ns, and 150ns maximum.
The module is organized as 128Kx8 bits and supports sector architecture with eight equal size sectors of 16K bytes each. It operates on a single +5V power supply and includes embedded erase and program algorithms for in-system programming without requiring external high voltage sources.
| Memory Capacity | 128K x 8 bits |
|---|---|
| Operating Temperature Range (Military) | -55°C to +125°C |
| Supply Voltage | +4.5V to +5.5V |
| Access Time Grades | 60ns, 70ns, 90ns, 120ns, 150ns |
| Endurance (Write/Erase cycles) | 100,000 |
| Data Retention | 10 Years |
| Sector Architecture Size | 16K bytes each |
The standard access times are 60ns, 70ns, 90ns, 120ns, and 150ns maximum.
No, it uses a single +5V power supply operation for both read and write functions.
The device supports a minimum of 100,000 erase and program cycles.
