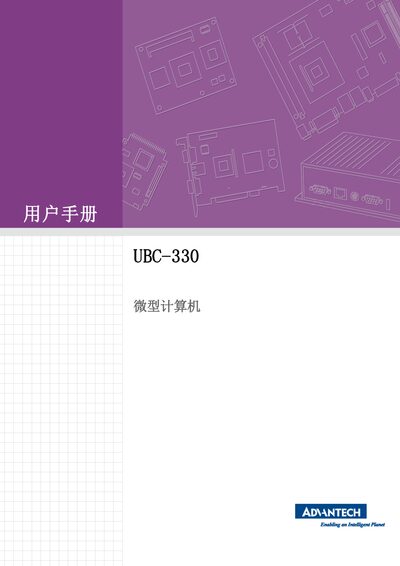

The Advantech UBC-330 microcomputer user manual provides product features, hardware and software information, safety instructions, and setup guidance.
The UBC-330 is a compact industrial microcomputer based on a TI Sitara AM3352 Cortex‑A8 1 GHz processor, offering dual Gigabit Ethernet, multiple serial ports, GPIOs and other I/O for control applications. This manual covers the product’s specifications, hardware layout, software packages, and detailed safety and warranty information.
It includes hardware descriptions, wiring diagrams, quick‑start procedures, test tools, and programming guides for Linux, watchdog, GPIO, CAN and other interfaces, helping users install, configure and develop applications on the board. This manual is written in Chinese.
| Processor | TI Sitara AM3352 Cortex‑A8 1 GHz |
|---|---|
| System Memory | 512 MB DDR3 800 MHz (on‑board) |
| Storage | 4 GB eMMC |
| Ethernet Ports | 2 × 10/100/1000 Mbps (Realtek 8211) |
| Power Input | DC 12 V / 19 V / 24 V |
| RTC Battery | 3 V, 210 mAh |
| Operating Temperature | 0 °C – 55 °C |
| Weight | 640 g (gross) |
| Dimensions | 129.55 mm × 191 mm (with metal plate) |
| EMC Compliance | CE / FCC / CCC / Class B |
Advantech provides a two‑year warranty from the date of purchase, but it does not apply to products serviced by unauthorized personnel.
Press the reset (restart) button on the board as described in the hardware section.
The board accepts DC power supplies of 12 V, 19 V or 24 V.
