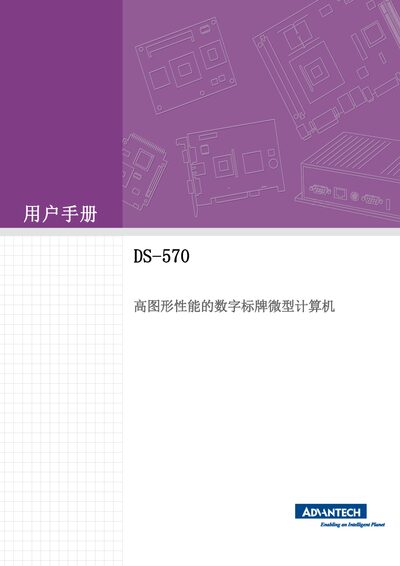

User manual for the Advantech DS-570 digital‑signage mini computer, covering specifications, installation and safety.
The DS-570 is a digital‑signage mini computer that integrates an Intel Celeron processor and an NVIDIA GeForce GT730M graphics module to support UHD resolution. It offers multiple display outputs, USB ports, Ethernet, COM ports and audio interfaces for flexible system integration.
This manual provides product overview, hardware specifications, mechanical dimensions, power and environmental requirements, safety instructions, and step‑by‑step hardware installation procedures such as memory, storage, Mini‑PCIe and antenna installation. This manual is written in Chinese.
| CPU | Intel Celeron N2930 (1.86 GHz) or Celeron J1900 (2.0 GHz) |
|---|---|
| Graphics | NVIDIA GeForce GT730M |
| Memory | 2 DDR3 SO‑DIMM slots, up to 8 GB total (4 GB per slot) |
| Storage | 1× 2.5" SATA HDD (7 mm height) or SSD |
| Display Outputs | 2 HDMI, 1 DP++, 1 VGA (up to 4K2K @30 Hz) |
| Power Input | 19 VDC, 3.42 A minimum |
| Dimensions | 220 mm × 150 mm × 44.2 mm |
| Weight | 1.7 kg |
| Operating Temperature | 0 °C ~ 40 °C |
The DS-570 comes with a two‑year product warranty from the date of purchase.
It supports four display outputs: two HDMI ports, one DP++ port, and one VGA port.
A 3 V 195 mAh BR2032 battery is used for the RTC.
The system requires a minimum input of 19 VDC at 3.42 A.
