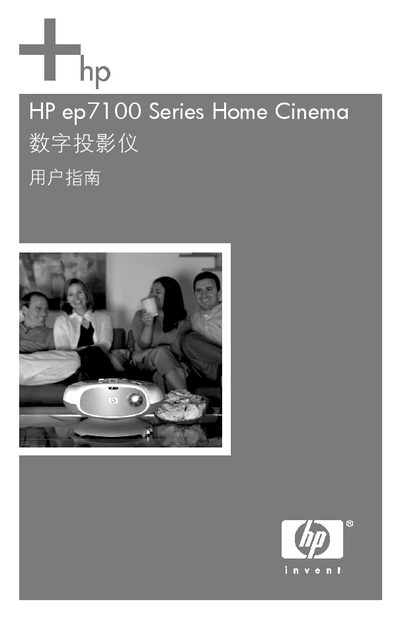

This document is a user guide for HP ep7100 Series Home Cinema Digital Projector, which provides information on installation and usage, including safety precautions, common functional components, projector overview, and connecting power and video sources.
This manual covers everything needed to set up and use the HP EP7100 Series Home Cinema digital projector, including safety precautions, unpacking, component overview, and connection methods. Detailed sections guide you through installation options such as ceiling, rear‑projection, and desktop mounting.
Additional chapters explain basic adjustments, picture and sound settings, maintenance tasks like lens cleaning and lamp replacement, permanent installation wiring, troubleshooting tips, and technical specifications. Support and warranty information are also provided. This manual is written in Chinese.
| Dimensions | 386 × 365 × 205 mm (15.2 × 14.4 × 8.1 in.) |
|---|---|
| Weight | 5.7 kg (12.5 lb) |
| Resolution | SVGA (800×600) for EP7110 series; XGA (1024×768) for EP7120 series |
| Video Interfaces | Super‑video (mini‑DIN), Composite (RCA), Component (3×RCA), DVI‑I (EP7120 series) |
| Audio Interface | Stereo input (2×RCA) |
| Other Interfaces | Service port, RS‑232 control (EP7120 series) |
Use a soft, dry cloth to gently clean the lens after the projector has cooled down, and avoid touching the lens with fingers.
The projector provides a Super‑video (mini‑DIN) connector, Composite (RCA), Component (3×RCA), and for the EP7120 models a DVI‑I connector.
The unit measures 386 × 365 × 205 mm and weighs 5.7 kg.
