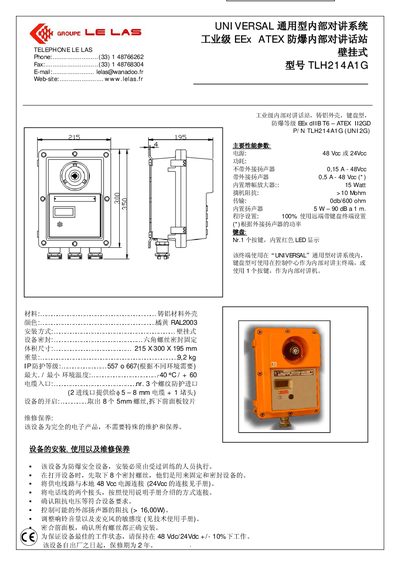

The TLH214A1G is a wall‑mounted, explosion‑proof internal intercom system designed for industrial environments. It features a cast‑aluminum housing, a single‑key keypad with red LED, and optional external speaker support. The device complies with EEx dIB T6 – ATEX 112GD safety standards.
The manual covers power connection (48 VDC or 24 VDC), wiring of the internal and external speaker, adjustment of volume and microphone sensitivity, and routine maintenance procedures. Installation must be performed by trained personnel, and the unit is covered by a two‑year warranty. This manual is written in Chinese.
| Model | TLH214A1G |
|---|---|
| Explosion‑proof rating | EEx dIB T6 – ATEX 112GD |
| Power supply voltage | 48 VDC or 24 VDC |
| Current (no external speaker) | 0.15 A |
| Current (with external speaker) | 0.5 A |
| Built‑in amplifier power | 15 W |
| Input impedance | >10 MΩ |
| Transmission line impedance | 0 dB / 600 Ω |
| External speaker power | 5 W – 90 dB |
| Enclosure material | Cast aluminum |
| Color | RAL2003 (bright yellow) |
| Warranty period | 2 years |
It can be powered from either 48 VDC or 24 VDC.
The keypad has one key with a built‑in red LED indicator.
The unit is certified to EEx dIB T6 – ATEX 112GD standards.
The device comes with a two‑year warranty.
