ARM8020 is a highly cost-effective, compact and low-power industrial embedded motherboard designed by Beijing Art Technology Development Co., Ltd. in accordance with the CAN bus specifications. The CPU uses Intel's XScale series PXA270, with a main frequency of up to 520MHz and an overall power consumption of only 5W. It runs on the embedded Linux or WinCE operating system and can handle a variety of computing tasks.

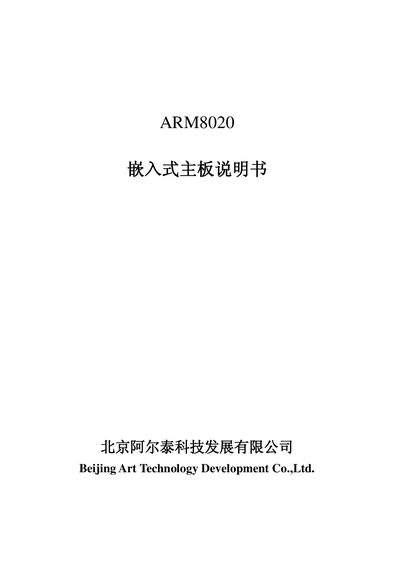

This manual describes the ARM8020 embedded motherboard designed by Art Technology. It covers product overview, key features, electrical parameters, mechanical dimensions, and software support for Linux and WinCE operating systems.
The document includes safety precautions, detailed connector pinouts, interface specifications, and ordering information, helping users integrate the board into industrial control applications. This manual is written in Chinese.
| CPU | Intel XScale PXA270 |
|---|---|
| CPU Frequency | 104 MHz – 520 MHz |
| CPU Power Consumption | 750 mW |
| SDRAM | 64 MB |
| NOR Flash | 32 MB (Intel StrataFlash) |
| NAND Flash | 256 MB (Samsung) |
| CF Card Capacity | 256 MB – 8 GB |
| VGA Resolution | 800 × 600 |
| USB Host Ports | 2 ports, USB 2.0, 12 Mbps |
| Ethernet Ports | 2 ports, 10/100 Mbps auto‑negotiation |
| CAN Bus | 2 channels (CAN2.0 A/B) |
| Operating Temperature | -40 °C to +85 °C |
| Power Supply | 5 V and 12 V inputs |
The board supports embedded Linux and WinCE operating systems.
The whole board consumes about 5 W of power.
