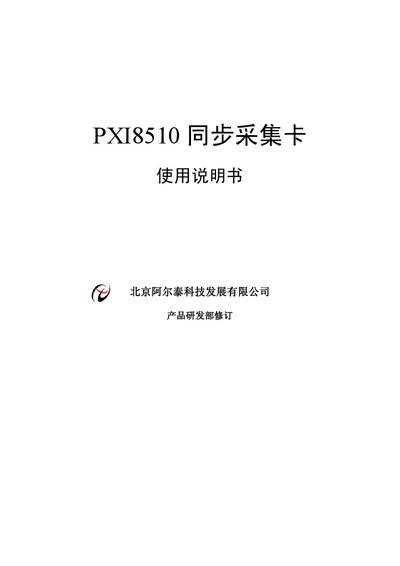

PXI8510 synchronous acquisition card user manual, introduces the card function overview, component layout, signal input and output connectors, various signal connection methods, data format, emission sequence and conversion relationship, various function use methods, product application precautions, calibration, warranty and other contents.
This manual describes the PXI8510 synchronization acquisition card, a PXI‑based measurement and automation module that supports up to eight analog input channels, digital I/O, and configurable timing. It outlines the card’s functional blocks, hardware layout, and signal connection methods.
The document includes detailed installation procedures, hardware setup, data acquisition settings, calibration steps, and warranty information, helping users integrate the card into PXI systems for data collection, waveform analysis, and control applications. This manual is written in Chinese.
| Analog input voltage range | ±10 V, ±5 V, 0‑10 V, 0‑5 V |
|---|---|
| Resolution | 16 bit |
| Sample rate | 1 Hz – 500 kHz |
| Number of analog channels | 8 (simultaneous) |
| Analog input mode | Differential (dual‑ended) |
| Channel switching | 8 independent channels |
| Data acquisition mode | Non‑triggered, half‑triggered, DMA |
| FIFO depth | 8 K points |
| Clock source | Internal and external selectable |
| Trigger mode | Internal and external |
| Analog input impedance | 10 MΩ |
| Operating temperature range | 0 °C – +50 °C |
| Storage temperature range | -20 °C – +70 °C |
The PXI8510 provides eight simultaneous analog input channels.
The analog inputs support ±10 V, ±5 V, 0‑10 V, and 0‑5 V ranges.
The card can sample from 1 Hz up to 500 kHz.
It operates from 0 °C to +50 °C, and can be stored from -20 °C to +70 °C.
