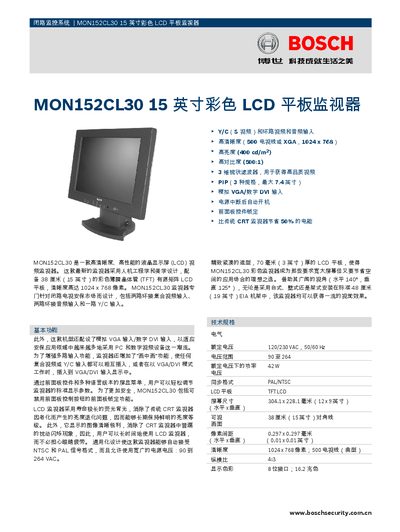

MON152CL30 is a high-definition, high-performance liquid crystal display (LCD) video monitor. This latest monitor features ergonomic and aesthetic design, and is equipped with a 38-cm (15-inch) color thin-film transistor (TFT) active matrix LCD panel with a resolution of up to 1024 x 768 pixels.
The MON152CL30 is a 15‑inch color LCD flat‑panel monitor featuring a 1024 × 768 pixel resolution, 400 cd/m² brightness and 500:1 contrast ratio. It supports multiple video inputs including VGA, DVI, CVBS and Y/C, and offers picture‑in‑picture functionality.
This manual covers the monitor’s technical specifications, front‑panel controls, input connectors, mounting options, environmental limits, and safety compliance. It also includes wiring diagrams, accessory lists, and recommended installation procedures for desktop, wall‑mount or rack mounting configurations. This manual is written in Chinese.
| Screen size | 15 inches (diagonal) |
|---|---|
| Resolution | 1024 × 768 pixels |
| Brightness | 400 cd/m² |
| Contrast ratio | 500:1 |
| Power consumption | 42 W |
| Input voltage | 120/230 VAC, 50/60 Hz |
| Viewing angle | Horizontal 140°, Vertical 125° |
| Backlight life | 50 000 hours (at 50% brightness) |
| Weight (with base) | 4.9 kg |
The monitor has a resolution of 1024 × 768 pixels.
It provides 400 cd/m² brightness and a 500:1 contrast ratio.
The monitor operates on 120/230 VAC at 50/60 Hz.
The viewing angle is 140° horizontally and 125° vertically.
