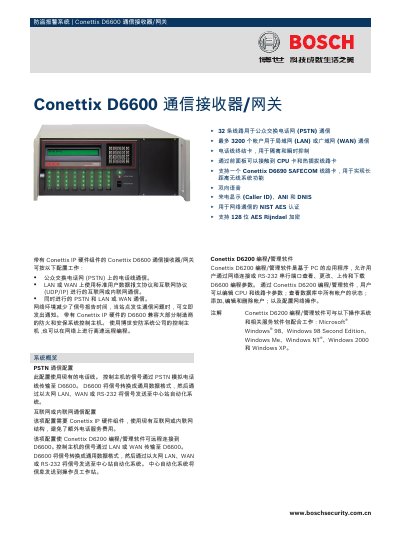

This document introduces the Conettix D6600 communication receiver/gateway, which has flexible configuration options and can communicate via telephone lines, the internet or intranet, and simultaneously through PSTN and LAN or WAN. With the Conettix IP hardware component, this product is compatible with most manufacturers' fire and security system control panels and allows for high-speed remote programming. The document also describes the features of the Conettix D6200 programming/management software. The product supports 32 lines for PSTN communication and up to 3200 accounts for LAN or WAN communication. It also supports features such as two-way voice, caller ID, NIST AES authentication for network communication, etc.
This document provides an overview of the Conettix D6600 communication receiver/gateway, detailing its support for PSTN, LAN/WAN, and combined communications. It describes how the device converts signals from control hosts and forwards them to automation systems via Ethernet, RS‑232, or other interfaces.
The guide also covers programming using the Conettix D6200 software, hardware specifications, power requirements, rack‑mount dimensions, and optional accessories such as line cards and SAFECOM modules. Certification and regulatory information are included for global deployments. This manual is written in Chinese.
| AC rated operating range | 120 V or 230 V AC |
|---|---|
| Maximum operating voltage/current | 100‑120 VAC / 220‑230 VAC, 50‑60 Hz, max 2.5 A |
| Supported telephone lines | 32 lines |
| Supported network accounts | up to 3200 |
| Rack‑mount dimensions (4U) | 18 × 48.3 × 49.5 cm |
| Weight | 8.7 kg |
| Encryption for network communication | 128‑bit AES Rijndael |
The D6600 can handle up to 32 telephone lines.
It supports up to 3,200 network (LAN/WAN) accounts.
The device uses 128‑bit AES Rijndael encryption.
