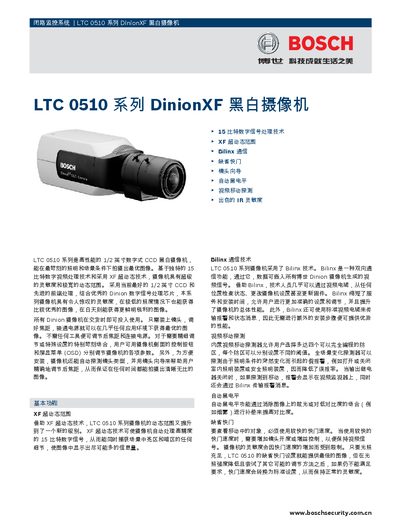

The LTC 0510 series DinionXF monochrome camera is a high-performance 1/2-inch digital CCD monochrome camera that can capture the best images in the most demanding lighting and scene conditions. Based on the unique 15-bit digital video processing technology and using XF super dynamic technology, the camera has super sensitivity and extremely wide dynamic range.
This manual describes the high‑performance 1/2‑inch CCD black‑white camcorder of the Bosch LTC 0510 series. It explains core functions such as XF ultra‑dynamic range, Bilinx communication, video motion detection, automatic black level, and programmable shutter settings. The document also covers lens‑guide assistance, back‑light compensation, and sensitivity enhancement for low‑light environments.
Technical specifications, mechanical dimensions, environmental limits, power requirements, and ordering information are listed. The manual includes details on accessories, power supplies, and configuration software, as well as certification and compliance data. This manual is written in Chinese.
| Image sensor | 1/2‑inch CCD |
|---|---|
| Effective pixels (CCIR) | 752 × 582 |
| Effective pixels (EA) | 768 × 492 |
| Minimum illumination (enhanced) | 0.0021 lux (0.00021 fc) |
| Horizontal resolution | 570 TV lines |
| Signal‑to‑noise ratio | >50 dB |
| Video output | 1 V p‑p, 75 Ω |
| Power supply (LTC0510/10) | 12‑28 VAC, 45‑65 Hz |
| Dimensions | 59 × 67 × 122 mm |
| Weight (without lens) | 450 g (0.99 lb) |
| Operating temperature | -20 °C to +50 °C |
| Storage temperature | -25 °C to +70 °C |
| Relative humidity (operating) | 20 % to 93 % RH |
Bilinx enables two‑way video cable communication so technicians can check status, change settings, and update firmware from any location.
The camcorder supports up to four programmable motion‑detection zones, each with its own sensitivity setting.
The lens guide automatically detects the lens type and helps the user adjust focus to achieve optimal imaging without special tools.
