FlexiDome IP camera is a compact designed closed circuit monitoring system with a high-strength anti-riot housing. The camera supports simultaneous transmission of three video streams, including two H.264 video streams and one M-JPEG video stream. The camera has built-in video motion detection function and additional processing capability of video content analysis system. The camera uses various image enhancement technologies, including starlight technology and automatic black level technology. The camera uses progressive scan technology to provide high-quality images. It also supports bandwidth and storage management, as well as standard intelligent technology.

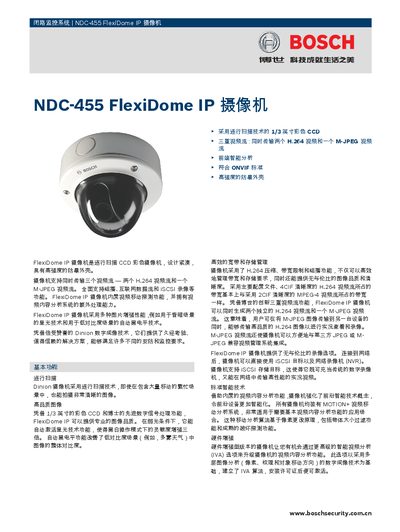

The manual describes the FlexiDome IP camera’s high‑quality imaging, including a 1/3‑inch CCD sensor, star‑light and automatic black‑level technologies, and support for three simultaneous video streams (two H.264 and one M‑JPEG). It also outlines the camera’s robust anti‑vandal housing, ONVIF compliance, and advanced video analytics such as Motion+ and IVA.
Installation guidance covers mounting options (surface, wall, corner, ceiling), power choices (PoE, 24 VAC, 12 VDC), network configuration, security features (AES‑128 encryption, HTTPS, 802.1X), and typical applications in schools, banks, retail, and other outdoor environments. This manual is written in Chinese.
| Rated voltage | 24 VAC (10 % tolerance) / 12 VDC |
|---|---|
| Current consumption | 500 mA (12 VDC) / 650 mA (24 VAC) / 200 mA (PoE) |
| Sensor type | 1/3‑inch CCD |
| Effective pixels (PAL) | 752 × 582 |
| Video compression | H.264, M‑JPEG, JPEG |
| Data rate | 9.6 kbps – 6 Mbps |
| Frame rate | 1 – 50/60 fps (PAL/NTSC) |
Yes, the camera complies with the ONVIF standard for interoperability with other network video products.
The camera can be powered by PoE (Power over Ethernet), 24 VAC, or 12 VDC.
It can transmit three video streams at once: two H.264 streams and one M‑JPEG stream.
The camera can be installed as surface, wall, corner, or ceiling mount.
