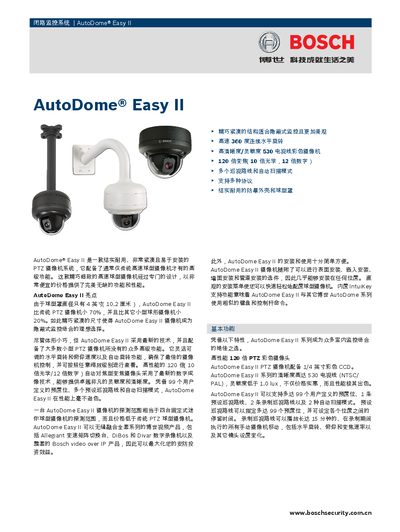

AutoDome Easy II is a rugged, extremely compact and easy-to-install PTZ camera system that offers advanced features normally only found in traditional high-speed dome cameras. This sophisticated high-speed dome camera is specially designed to provide superior performance and functionality at a very affordable price.
The AutoDome Easy II is a compact PTZ security camera with a 4‑inch (10.2 cm) diameter, offering 120× PTZ zoom, 10× optical and 12× digital zoom, and high‑resolution 1/4‑inch color CCD sensor. It supports up to 99 preset positions, multiple patrol routes, and a 360° pan with 0‑94° tilt range, making it suitable for indoor and outdoor surveillance.
The manual details quick installation options (surface, recessed, and pipe mounting), power requirements (12 VDC / 24 VAC, 10 W), operating conditions, and accessories such as mounting bases and configuration tools. It also lists supported protocols (Biphase, RS‑485, Bilinx) and language options for the user interface. This manual is written in Chinese.
| Optical zoom | 10× |
|---|---|
| Digital zoom | 12× |
| Sensor | 1/4‑inch color CCD |
| Video format | NTSC / PAL |
| Power input | 12 VDC / 24 VAC |
| Dimensions | 4.0 in × 10.2 in |
| Operating temperature | -20 °C to 60 °C |
| Operating humidity | 0%–90% RH |
| Preset positions | up to 99 |
The camera supports up to 99 preset positions.
