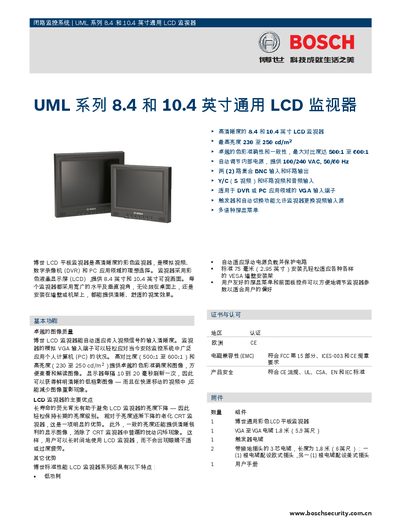

The document introduces Bosch LCD panel monitors for closed circuit surveillance systems, including the features and functions of 8.4-inch and 10.4-inch universal LCD monitors.
The UML series LCD monitors from Bosch are high‑definition color displays designed for analog video, DVR and PC applications. They are available in 8.4‑inch and 10.4‑inch screen sizes with wide viewing angles and low power consumption.
This manual covers technical specifications, connector descriptions, power requirements, mounting options, accessories, ordering information, and contact details for Bosch security. It also includes basic operating functions such as video input selection, OSD menu navigation, and trigger functions. This manual is written in Chinese.
| Resolution | 800 × 600 pixels |
|---|---|
| Brightness | 230 – 250 cd/m² |
| Contrast Ratio | 500:1 – 600:1 |
| Input Voltage | 100 – 240 V AC, 50/60 Hz |
| Backlight Life | 50,000 hours |
| Viewing Angle | 160° × 140° (H × V) |
| Weight | 1.16 kg (2.56 lb) – 1.53 kg (3.37 lb) |
| Operating Temperature | 0 °C – 45 °C |
The monitor uses a cold‑cathode fluorescent tube backlight rated for up to 50,000 hours of operation.
