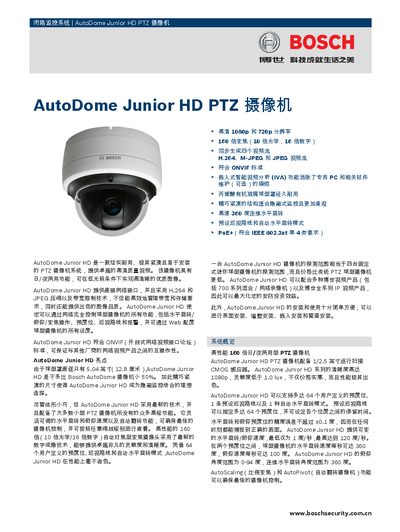

AutoDome Junior HD is a rugged, extremely compact and easy-to-install PTZ camera system that provides superior high-definition quality video. The camera has day/night capability for high-quality images in low light conditions. AutoDome Junior HD provides a direct network interface and employs H.264 and JPEG compression and bandwidth limiting technology to efficiently manage bandwidth and storage requirements while providing excellent image quality. AutoDome Junior HD allows you to fully control all functions of the dome camera via the network, including pan/tilt/zoom operations, presets, tour routes and alarms, and to configure all settings of the dome camera via the Web. AutoDome Junior HD conforms to the ONVIF (Open Network Video Interface Forum) standard, which ensures interoperability with network video products from other manufacturers.
This manual describes the features and operation of the Bosch AutoDome Junior HD PTZ camera, a compact indoor unit with 1080p resolution, 10× optical zoom, and day/night capability. It explains how to install the camera on walls, ceilings, or pipes, and how to power it via PoE+ or 24 VAC.
The document also covers network configuration, ONVIF compliance, video stream settings, privacy masking, and accessory options. Detailed technical specifications, certification information, and ordering codes are provided for system integrators and installers. This manual is written in Chinese.
| Image Sensor | 1/2.5 inch progressive scan CMOS |
|---|---|
| Optical Zoom | 10× (6.3–63 mm) |
| Horizontal Rotation Speed | 1°/s – 120°/s (continuous 0–360°) |
| Preset Positions | 64 user‑defined presets |
| Power Consumption | 17 W (typical) |
| Power Supply Options | PoE+ (IEEE 802.3at, Class 4) or 24 VAC ±10%, 50/60 Hz |
| Operating Temperature | -10 °C to 40 °C |
It supports up to 64 user‑defined preset positions.
The camera provides 10× optical zoom, covering a focal length of 6.3 mm to 63 mm.
It can be powered via PoE+ (IEEE 802.3at, Class 4) or with a 24 VAC supply.
