VIDOS-NVR is part of a closed-circuit surveillance system, providing long-term video and audio storage and retrieval solutions. It receives MPEG-4 and MPEG-2 videos via the network and features Automatic Network Recovery technology. VIDOS-NVR can be expanded to handle an unlimited number of cameras and users, and is wired through a gigabit Ethernet connection. It offers high performance and reliability.
The VIDOS‑NVR is a network‑based video recorder that provides long‑term video and audio storage, retrieval, and management. It consists of management software, a server platform, and RAID‑5 storage, and can be expanded to handle an unlimited number of cameras and users. The system receives MPEG‑4 and MPEG‑2 streams from IP encoders and uses ANR technology to prevent video loss during network interruptions.

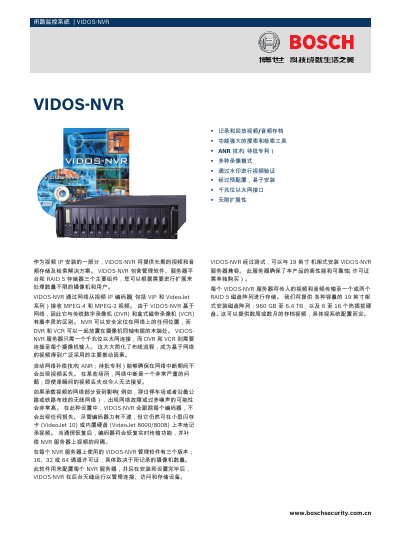

The guide covers installation and configuration, hardware specifications such as CPU, RAM, and Ethernet requirements, software features, storage options, licensing for 16, 32, or 64 channels, and ordering information. Contact details for Bosch security offices in Mainland China and Hong Kong are also provided. This manual is written in Chinese.
| CPU | Pentium III Xeon or IV, 1.8 GHz or faster |
|---|---|
| RAM | 1024 MB |
| Operating System | Windows 2000 / Server 2003 |
| Ethernet Interface | 100/1000 MBit |
| Hard Disk Interface | IDE or better; optional SCSI II, SCSI Ultra or Fibre Channel |
VIDOS‑NVR servers need only a single gigabit Ethernet connection.
The system is available with 16, 32, or 64 channel licenses.
It supports RAID 5 arrays ranging from 960 GB to 6.4 TB and can use 6 to 16 hot‑swap hard drives.
Yes, ANR technology ensures no video loss during network interruptions.
