FrSky TW GR6 is a new generation of TW protocol receiver from FrSky company, which supports 2.4Ghz dual band and features a high-precision variometer sensor and black box function

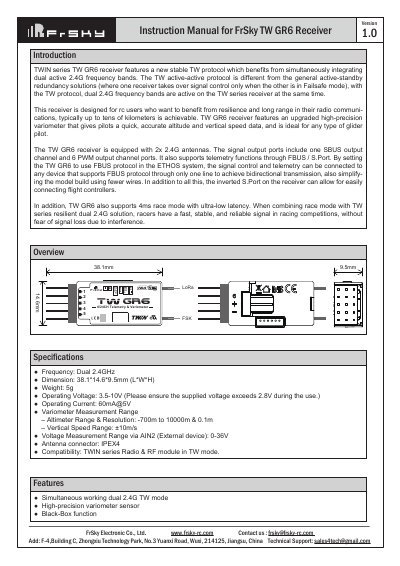

This manual provides instructions for the FrSky TW GR6 receiver, a dual 2.4GHz device designed for RC users requiring resilience and long-range communication. Key features include a high-precision variometer for altitude and vertical speed data, support for 6 PWM channels and SBUS output, and compatibility with TWIN series radios in TW mode. This manual is written in Chinese.
| Frequency | Dual 2.4GHz |
|---|---|
| Dimension | 38.1*14.6*9.5mm (L*W*H) |
| Weight | 5g |
| Operating Voltage | 3.5-10V |
| Operating Current | 60mA@5V |
| Variometer Measurement Range | -700m to 10000m |
| Vertical Speed Range | ±10m/s |
| Voltage Measurement Range via AIN2 | 0-36V |
| Antenna connector | IPEX4 |
| PWM output channel ports | 6 |
| SBUS Out Support | 16CH / 24CH mode |
Enter into Model-RF system, select the Channel Range as CH1-CH8. Click [Switch Positions] and select a switch to start 4ms race mode.
Enter into RX Settings, click [SBUS], then select SBUS-16 mode or SBUS-24 mode.
Go to the [File manager], select the FW, press the enter button, select [Flash RX by int.OTA], power on the receiver, and complete the flash process.
