FrSky 2.4GHz ACCST Taranis X-Lite is a compact, convenient digital telemetry radio system.

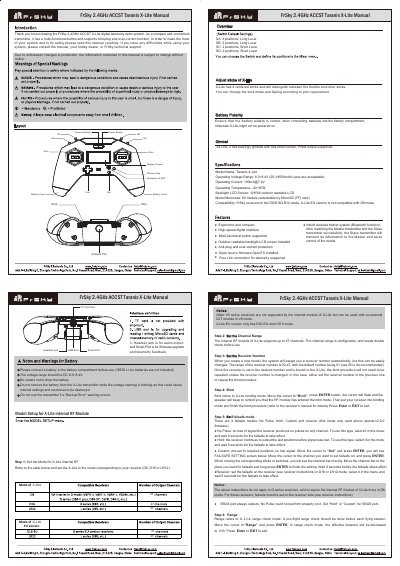

The document provides operating instructions for the FrSky Taranis X-Lite transmitter, including battery polarity checks, stick mode settings, and internal RF module setup. It details procedures for binding receivers (D8, D16, LR12) and configuring various failsafe modes such as No Pulse, Hold, and Custom.
| Operating Voltage Range | DC 6.0~8.4V |
|---|---|
| Operating Current | 190mA |
| Operating Temperature | -20~60 C |
| LCD Screen Resolution | 128*64 |
| Model Memories Capacity | 60 models |
| Max Channels Supported | 47 channels |
The internal RF module supports D8, D16, and LR12 modes. Older V8 series receivers require an external DJT module.
For D-series receivers, you must set the failsafe on the receiver itself using D16 or LR12 mode.
The device accepts 2S-18500mAh Lipos within a voltage range of DC 6.0~8.4V.
