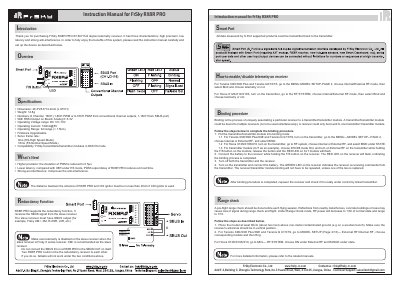

FrSky RX8R PRO 8/16CH Receiver Instruction Manual

This document introduces the features of frsky rx8r pro 8 / 16ch full duplex telemetry receiver, including high precision, low latency and strong anti-interference

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 1.8 MB
Published: 15 October, 2023
Updated: 15 October, 2023
Model: X8R
MD5 checksum: 482F58F68A848B01C6FFFABD4A11A04B
PDF: FrSky RX8R PRO 8/16CH Receiver Instruction Manual PDF

About this manual

This manual provides instructions for the FrSky RX8R PRO, an 8/16 channel full duplex telemetry receiver designed for use with FrSky transmitters in D8/D16 mode. Key features include high precision with 0.5μs PWM deviation, low latency, and strong anti-interference capabilities. The device supports both Normal Speed Mode (18ms) and High Speed Mode (9ms) for servo frame rates.

What's inside

What's New
Specifications
Introduction
Smart Port
Binding Procedure
Range Check
Redundancy Function
Failsafe Setting
Operating Mode Switching
FCC Statement

Specifications

Dimension	46.326.614.2mm (L×W×H)
Weight	14.8g
Numbers of Channel	16CH
Operating Voltage	DC 3.5~10V
Operating Current	100mA@5V
Operating Range	full range (> 1.5km)
Servo frame rate (Normal)	18ms
Servo frame rate (High Speed)	9ms

Frequently asked questions

How do I enable telemetry on the receiver?

After binding, repower the receiver and check if it is really under control by the linked transmitter.

What is the binding procedure for the receiver?

Put the transmitter in binding mode, connect the battery to the receiver while holding the F/S button, then turn off both devices before turning them on again.

How do I switch the servo frame rate to High Speed Mode?

Jump the signal pins of CH5&CH6 before binding to enable the 9ms High Speed Mode.

Can two RX8R PRO units be used as redundancy receivers for each other?

No, two RX8R PRO units cannot be the redundancy receiver to each other.
