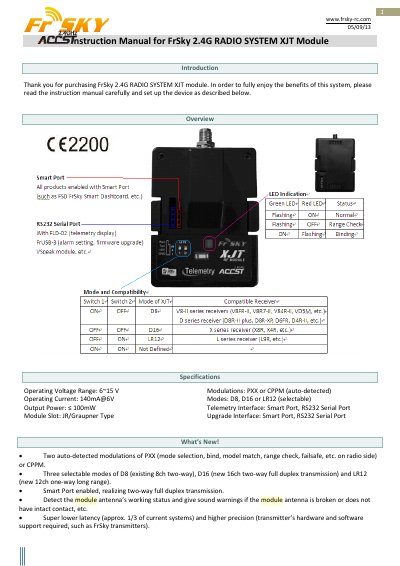

FrSky XJT Module 2.4G Radio System Instruction Manual

This document is the instruction manual for FrSky 2.4G RADIO SYSTEM XJT module, introduces the features and usage of the module.

Brand: FrSky
Category: Other
Document type: User Manual
Language: English
Pages: 3
File format: PDF
File size: 211 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 3DEEFEB31C04D671BA4D7C9A0D752631
PDF: FrSky XJT Module 2.4G Radio System Instruction Manual PDF

About this manual

The FrSky XJT module is a 2.4G radio system component designed for use with compatible transmitters and receivers. It supports multiple modulation types including PXX and CPPM, and offers selectable modes such as D8, D16, and LR12. The module features a Smart Port interface for full duplex digital transmission and includes an antenna status detection system with sound warnings.

What's inside

Introduction
Specifications
What's New
Binding Procedure
Range Check
Safe Flying Distance
Smart Port
FCC Statement

Specifications

Operating Voltage Range	6~15 V
Operating Current	140mA@6V
Output Power	≤ 100mW
Module Slot Type	JR/Graupner Type
Modulations	PXX or CPPM (auto‐detected)
Modes	D8, D16 or LR12 (selectable)

Frequently asked questions

What does a constant triple beep indicate during range check?

It indicates that the model is in near maximum range.

What is the operating voltage range for the FrSky XJT module?

The module operates within a voltage range of 6 to 15 V.

How far above the ground should the model be placed for a range check?

The model must be placed at least 60cm (two feet) above non-metal contaminated ground.

What happens if the module antenna is broken or has poor contact?

The system will give sound warnings to alert the user of the issue.
