FrESC32_80A is a high-power brushless motor speed controller that supports Dshot signal, has a high-performance processor, supports Smart Port, and has over-temperature and over-current protection, with a maximum output current of 80A.

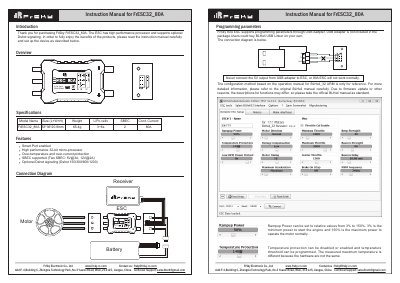

This manual provides instructions for the FrSky FrESC32_80A electronic speed controller (ESC), which features a high-performance 32-bit micro-processor and supports optional Dshot signaling. The device includes over-temperature and over-current protection and supports two SBECs (5V@3A and 12V@2A). It is designed for use with 3~6s LiPo batteries and motors, with a continuous current rating of 80A.
| Model Name | FrESC32_80A |
|---|---|
| Size | 53*36*20.8mm |
| Weight | 65.4g |
| LiPo cells | 3~6s |
| Cont. Current | 80A |
The ESC supports optional Dshot signaling with options for Dshot 150/300/600/1200.
Rampup Power can be set to relative values from 3% to 150%, where 3% is the minimum to start the engine and 150% is the maximum for normal operation.
The configuration method is based on the operation manual for BLHeli_32 ARM, and parameters can be set through a USB Adapter.
