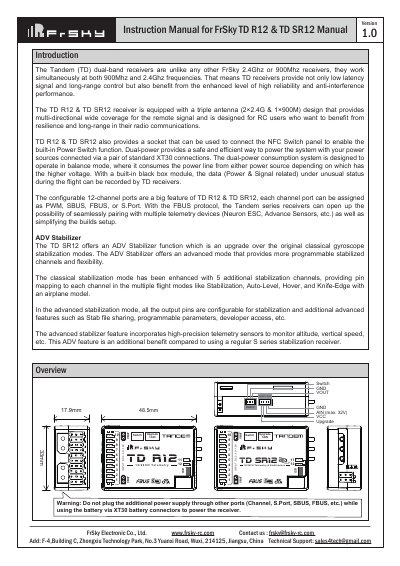

FrSky TD R12 and TD SR12 are dual-band receivers that work simultaneously at 900Mhz and 2.4Ghz frequencies. They provide not only low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance. The TD R12 and TD SR12 receiver is equipped with a triple antenna (2×2.4G & 1×900M) design that provides multi-directional wide coverage for the remote signal and is designed for RC users who want to benefit from resilience and long-range in their radio communications. TD R12 and TD SR12 also provides a socket that can be used to connect the NFC Switch panel to enable the built-in Power Switch function. Dual-power provides a safe and efficient way to power the system with your power sources connected via a pair of standard XT30 connections. The dual-power consumption system is designed to operate in balance mode, where it consumes the power line from either power source depending on which has the higher voltage. With a built-in black box module, the data (Power & Signal related) under unusual status during the flight can be recorded by TD receivers. The configurable 12-bit ADC provides TD R12 and TD SR12 with higher sensitivity.
The FrSky TD R12 and TD SR12 are tandem dual-band receivers that operate simultaneously on 900MHz and 2.4GHz frequencies to provide low latency and long-range control. The TD R12 features a configurable 12-channel port, while the TD SR12 adds an Advanced Stabilizer function with programmable parameters for flight stability.
| Frequency | 900MHz & 2.4GHz |
|---|---|
| Dimension | 48.5*33*17.9mm (L*W*H) |
| Weight | 23g |
| Operating Voltage | 3.5-10V (Recommend 2S Li Batteries) |
| Operating Current | ≤170mA |
| Continuous Current | ≤20A (power the device) |
| Voltage Measurement Range via AIN | 0-35V |
The TD SR12 offers an ADV Stabilizer function which upgrades traditional gyroscope stabilization modes with more programmable channels.
Both models feature 12 configurable channel ports that can be assigned as PWM, SBUS, FBUS, or S.Port.
Yes, it has a dual-power consumption system designed to operate in balance mode using XT30 connections.
