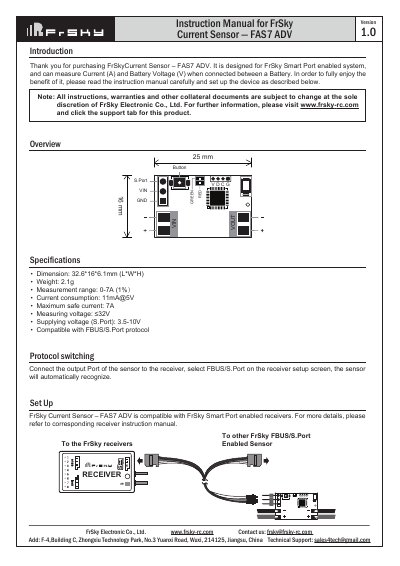

The FrSky Current Sensor – FAS7 ADV is a current measurement sensor designed for FrSky Smart Port system, which can measure battery voltage and current.
The FrSky FAS7 ADV is a current sensor designed for FrSky Smart Port enabled systems. It measures battery current (A) and battery voltage (V) when connected between a battery and the receiver. The device automatically recognizes the connection when the receiver is set to FBUS/S.Port protocol.
| Dimension | 32.6*16*6.1mm (L*W*H) |
|---|---|
| Weight | 2.1g |
| Measurement range | 0-7A |
| Current consumption | 11mA@5V |
| Maximum safe current | 7A |
| Measuring voltage | ≤32V |
| Supplying voltage | 3.5-10V |
| Compatible protocol | FBUS/S.Port |
| Default physical ID | 02 |
Connect the sensor output port to the receiver and select FBUS/S.Port on the receiver setup screen for automatic recognition.
The default physical ID for this sensor is 02.
Yes, the ID number can be changed using Free Link software for Windows, Android, or iOS.
A slowly flashing LED indicates FBUS is NO and S.Port is YES, while a quickly flashing LED indicates FBUS is YES and S.Port is NO.
