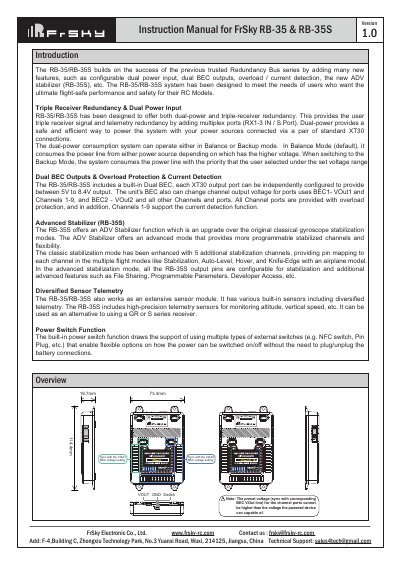

This document introduces the features of FrSky RB-35/RB-35S, including dual power input, triple receiver redundancy, dual BEC outputs, overload/current detection, etc.
The FrSky RB-35 and RB-35S are flight safety systems designed to provide ultimate flight-safe performance for RC models. The RB-35S model includes an Advanced Stabilizer (ADV) function and high-precision telemetry sensors for monitoring altitude and vertical speed. Both models feature configurable dual power input and triple receiver redundancy.
| Dimension | 114.4*73.4*18.7mm (L*W*H) |
|---|---|
| Weight | 98g (RB-35) / 99g (RB-35S) |
| Number of Configurable Channel Ports | 24 (PWM/FBUS/S.Port/SBUS Out) |
| Battery Input Voltage Range | DC7.4-26V |
| Operating Temperature | -20°C~75°C |
| Continuous Current | 2*[email protected] (BEC Outputs) |
In Balance Mode, the system consumes power from the battery line with the higher voltage. In Backup Mode, the system consumes the power line based on the priority selected by the user when the primary battery is consumed.
You must edit and enable the ADV stabilization mode using the RBmixer software before use.
Yes, the RB-35/RB-35S works as an extensive sensor module and can be used as an alternative to using a GR or S series receiver.
