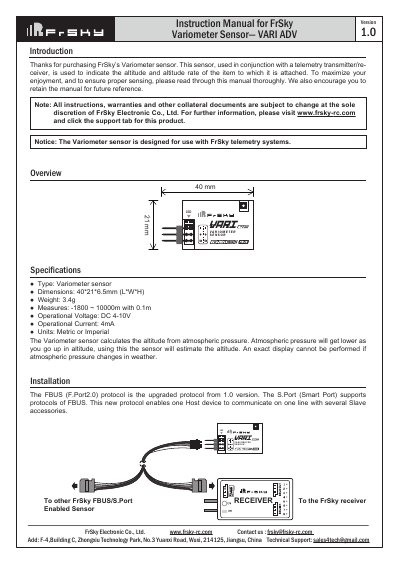

FrSky VARI ADV Variometer Sensor User Manual

This manual introduces the use of the FrSky Variometer Sensor. Including the function of the sensor, connection method, and usage precautions.

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 2
File format: PDF
File size: 601 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 8C840C52DA72820F2CE2482FA1A66D58
PDF: FrSky VARI ADV Variometer Sensor User Manual PDF

About this manual

The FrSky VARI ADV is a variometer sensor designed to work with FrSky telemetry systems. It measures altitude and altitude rate by detecting changes in atmospheric pressure. The device supports both Metric and Imperial units and communicates via the FBUS (F.Port2.0) or S.Port protocols. This manual is written in Chinese.

What's inside

Introduction
Installation
Specifications
LED Status

Specifications

Dimensions	40216.5mm (LWH)
Weight	3.4g
Measuring Range	-1800 ~ 10000m with 0.1m
Operational Voltage	DC 4-10V
Operational Current	4mA

Frequently asked questions

What does the LED indicate when flashing slowly?

A slow flash indicates that the sensor is connected to the FBUS port.

What does the LED indicate when flashing quickly?

A quick flash indicates that the sensor is connected to the S.Port.

What is the default physical ID for this sensor?

The default physical ID for this sensor is 00.
